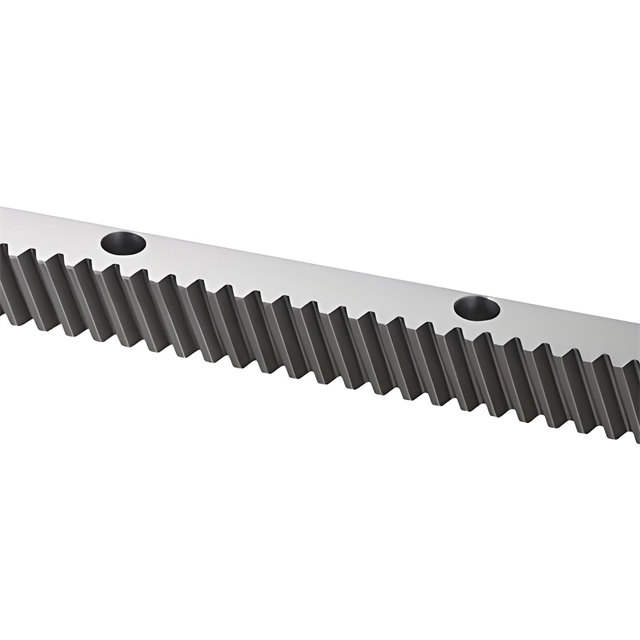

The helical gear rack consists of a long, straight bar with helical teeth machined along its length. The helix angle of the teeth is a crucial design parameter. A well - chosen helix angle can optimize the meshing process with the corresponding helical gear, ensuring smooth and efficient power transmission. The pitch of the rack, which is the distance between corresponding points on adjacent teeth, is also precisely determined to match the gear's pitch, guaranteeing accurate motion transfer.
The rack is typically made of high - quality materials such as steel, cast iron, or aluminum alloy, depending on the specific application requirements. Steel racks offer high strength and durability, making them suitable for heavy - duty applications. Cast iron racks provide good damping properties, reducing vibration and noise during operation. Aluminum alloy racks are lightweight and corrosion - resistant, ideal for applications where weight is a concern.
The helical tooth design allows for a gradual engagement between the rack and the gear. This results in a smoother transfer of power compared to straight - toothed racks, which often experience sudden impacts during meshing. The smooth operation also reduces noise levels, making helical gear racks suitable for applications where quiet working conditions are required, such as in precision machinery and automation systems.
The increased contact area between the helical teeth of the rack and the gear distributes the load more evenly. This enables helical gear racks to handle higher loads without premature wear or failure. As a result, they are commonly used in heavy - duty industrial applications, such as in large - scale manufacturing equipment and construction machinery.
The smooth meshing and even load distribution of helical gear racks lead to lower friction losses. This improves the overall efficiency of the power transmission system, reducing energy consumption and operating costs.
The manufacturing of helical gear racks involves several precise steps. First, the raw material is selected and prepared. Then, the blank is machined to the required dimensions using advanced CNC machining centers. The helical teeth are cut using specialized gear - cutting tools, which are programmed to create the exact helix angle and tooth profile.
After the machining process, the rack may undergo heat treatment to enhance its mechanical properties, such as hardness and toughness. Surface finishing operations, such as grinding or coating, are also carried out to improve the surface quality and corrosion resistance of the rack.
Helical gear racks are widely used in automated production lines and robotic systems. They are used to provide linear motion for robotic arms, conveyor belts, and other moving components. The precise and smooth motion control offered by helical gear racks ensures accurate positioning and high - speed operation of these systems.
In machine tools such as milling machines, lathes, and drilling machines, helical gear racks are used to drive the linear movement of the worktable or the cutting tool. Their high load - carrying capacity and efficiency contribute to the precision and productivity of the machining process.
In the aerospace and defense industries, helical gear racks are used in applications such as aircraft landing gear systems and missile guidance mechanisms. Their reliability and ability to operate under extreme conditions make them suitable for these critical applications.
We understand that different applications have unique requirements. That's why we offer a wide range of customization options for helical gear racks. We can customize the length, width, helix angle, pitch, and material of the rack according to your specific needs. Our experienced engineering team will work closely with you to design and manufacture the perfect helical gear rack for your application.
Quality is our top priority. We have a strict quality control system in place to ensure that every helical gear rack meets the highest standards. Our quality control team conducts inspections at every stage of the manufacturing process, from raw material inspection to final product testing.
We also provide excellent customer support. Our sales and technical teams are always available to answer your questions, provide technical advice, and assist you with installation and maintenance. We are committed to providing you with the best products and services, and we look forward to serving you.
